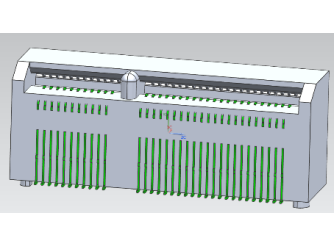

8.5mm Height KEY M NGFF M.2 Connector Next Generation Form Factor Connector Pitch 0.5mm
NOTES:
1.ELECTRICAL CHARACTERISTICS:
1.1 CONTACT CURRENT RATING:0.5 AMPERE MAX.PER PIN.
1.2 VOLTAGE RATING:50V AC.
1.3 INSULATION RESISTANCE:500 MEGAOHMS MIN.AT 500V DC;
1.4 DIELECTRIC WITHSTANDING VOLTAGE:300V AC RMS AT 60Hz,FOR 1 MINUTE.
1.5 CONTACTRESISTANCE:55 MILLIOHMS MAX.PER PIN INITIAL.
△R=20 MILLIOHMS MAX.PER PIN AFTER FULL ENVIRONMENT TESTING.
2.MECHANICAL CHARACTERISTICS:DURABILITY.60 MATING CYCLES.
3.OPERATION TEMPERATURE-40℃TO+80℃.
4.PLEASE CONTACT FOXCONN SALES REPRESENTATIVE TO VERIFY PRODUCT DETAIL &AVAILABILITY.
5.KEY LABLE "*"IS ACAPITAL LETTER PER THE PART NO.
6.RECOMMENDED PROCESS CONDITION:SMT,PEAK TEMPERATURE:260℃,10~20S.
| ③ | METAL TAB | STAINLESS STEEL | 2 | 10u"NICKEL UNDER PLATING
100u"MATTE TIN PLATING OVER ALL |
| ② | CONTACT | COPPER ALLOY | 67 | 50u"NICKEL UNDER PLATING
GOLD FLASH PLATING AT TAIL AREA
GOLD FLASH OR 5u"GOLD PLATING OR 10u"GOLD PLATING OR 15u"GOLD
PLATING OR 30u"GOLD PLATINGOR AT CONTACT AREA |
| ① | HOUSING | THERMOPLASTIC | 1 | UL94V-0,HALOGEN FREE,BLACK COLOR |
| ITEM | DESCRIPTION | MATERIAL | Q'TY | TREATMENT |
| 22110 | 107.6 |
| 2280 | 77.6 |
| 2260 | 57.6 |
| 2242 | 39.6 |
| 2230 | 27.6 |
| 3042 | 39.6 |
| 3030 | 27.6 |
| TYPE | DIM.P |
