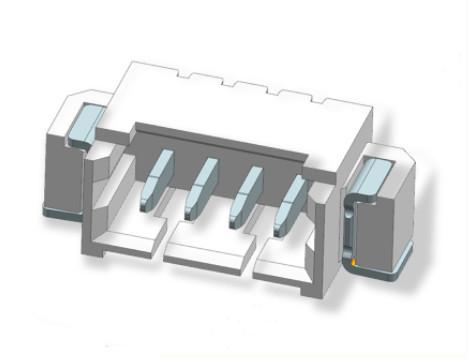

Horizontal High Current Wire To Board Connector Smt Height 3.5mm

  • 1
  • 2

Brand Name : WINSHOR

Model Number : WF12501-0XX-R00X02

Certification : ROHS,SGS,ISO

Place of Origin : China

MOQ : Customize

Payment Terms : T/T

Delivery Time : 1-3 weeks

Packaging Details : Reel

Pitch : 1.25mm

Pins : 2-20PINS

Height : 3.5mm

HOUSING : HIGH-TEMP THERMOPLASTIC UL94V-O,COLOR:NATURAL

TERMINAL : COPPER ALLOY,PLATNG:GOLD FLASH

SMT : Horizontal Smt

Current rating : 1.0A

Temperature range : -25C~85C

Contact Now

1.25mm Pitch WTB Wafer Wire To Board Connector Horizontal Smt Height 3.5mm

Horizontal High Current Wire To Board Connector Smt Height 3.5mm



2.6 Temperature range:-25C~85C

PIN A B C D E
2 1.25 2.35 3.05 7.25 7.45
3 2.50 3.60 4.30 8.50 8.70
4 3.75 4.85 5.55 9.75 9.95
5 5.00 6.10 6.80 11.00 11.20
6 6.25 7.35 8.05 12.25 12.45
7 7.50 8.60 9.30 13.50 13.70
8 8.75 9.85 10.55 14.75 14.95
9 10.00 11.10 11.80 16.00 16.20
10 11.25 12.35 13.05 17.25 17.45
11 12.50 13.60 14.30 18.50 18.70
12 13.75 14.85 15.55 19.75 19.95
13 5.00 16.10 6.80 21.00 21.20
14 16.25 17.35 18.05 22.25 22.45
15 17.50 18.60 19.30 23.50 23.70
16 18.75 19.85 20.55 24.75 24.95
17 20.00 21.10 21.80 26.00 26.20
18 21.25 22.35 23.05 27.25 27.45
19 22.50 23.60 24.30 28.50 28.70
20 23.75 24.85 25.55 29.75 29.95


Horizontal High Current Wire To Board Connector Smt Height 3.5mm
